the Department of Foxwold's-Got-Nothing-to-do-With-This-here

OR

How to Observe Tower Site Construction After Hours

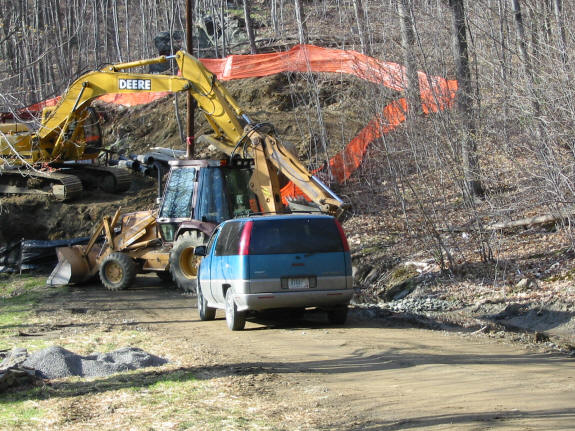

Well in the planning stages before I came around, the town is building a water tower..

I'm trying to get some progress photos..

in this case.. newest photos appear at the bottom..

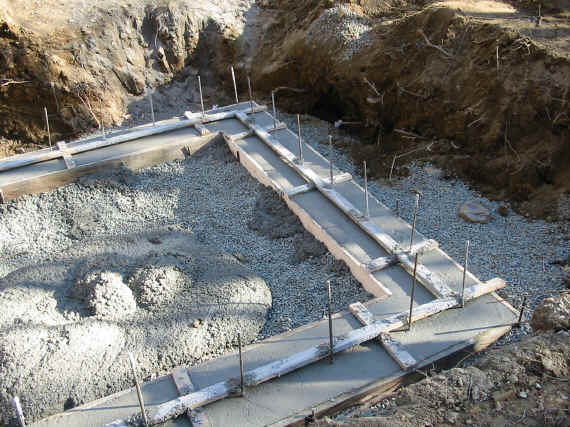

the first pour of foundation under the pump house..

Now that the leaves have come in.. all I can see from the house is that charming fence...

This looks like an inlet pipe in the center and an outlet gateway at near left

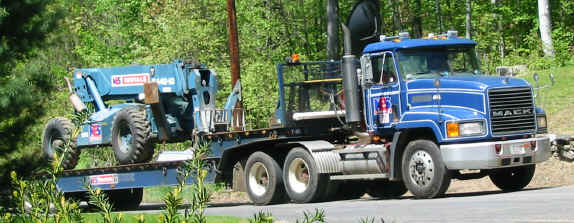

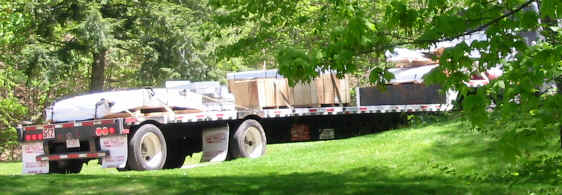

Trucks this size always seem to have to back out the way they came in..

Knowing what I know now, that one truck may very well contain the entire material list for the tank

If you just walked in from nowhere, you might think they were disassembling some sort of ship...

And the winning color is...   Dark Green..

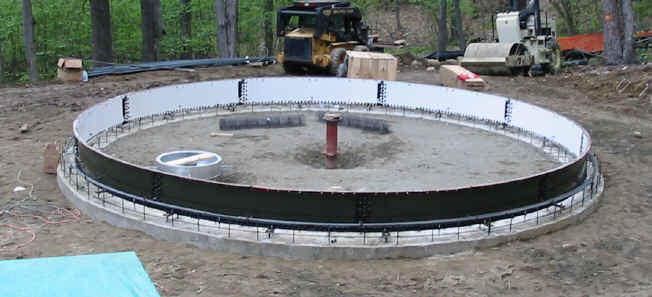

I'm certain now, this is the top section being built first...

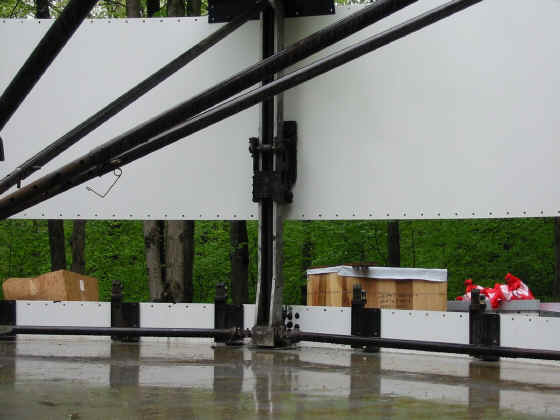

All these vertical jacks are interconnected with a series of driveshafts...

That inlet at near left is now up to top grade in cement..

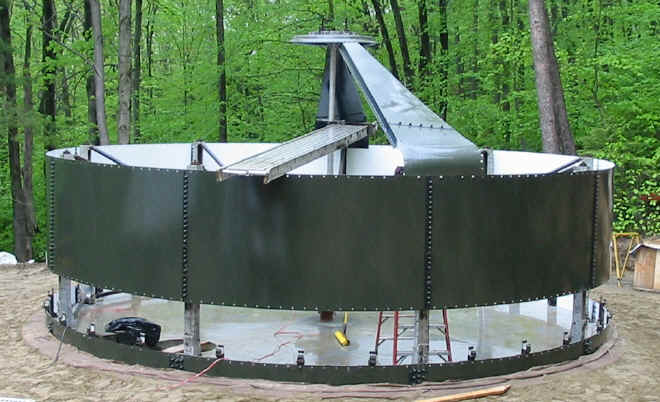

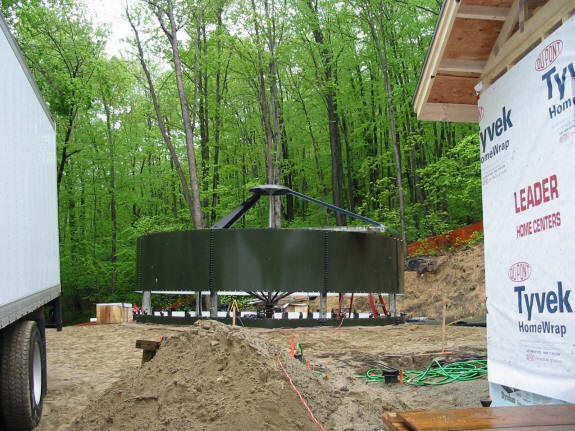

That's the beginning of roof sections going on the tower...

As the shafts turn, up goes the giant reclining comstock..

I may be not be an engineer.. but those two roof sections seem to be putting some kind of torque on that cap connector..

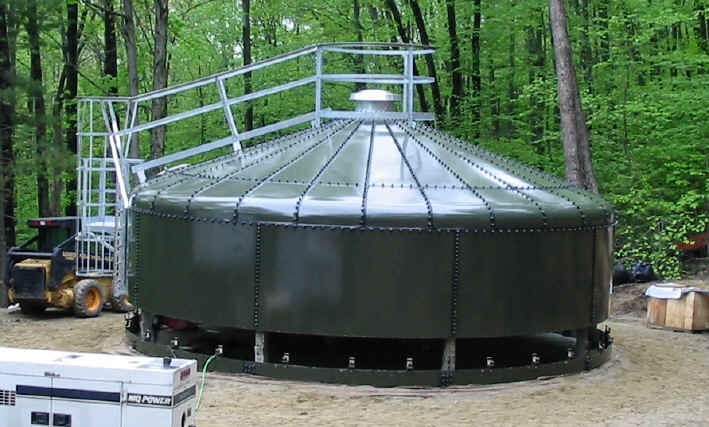

Torque or not.. that top is finished..  let the jacking begin?

Above: taken on Wednesday afternoon..

Above: Taken 24 hours later.  That looks like 15 feet gained...

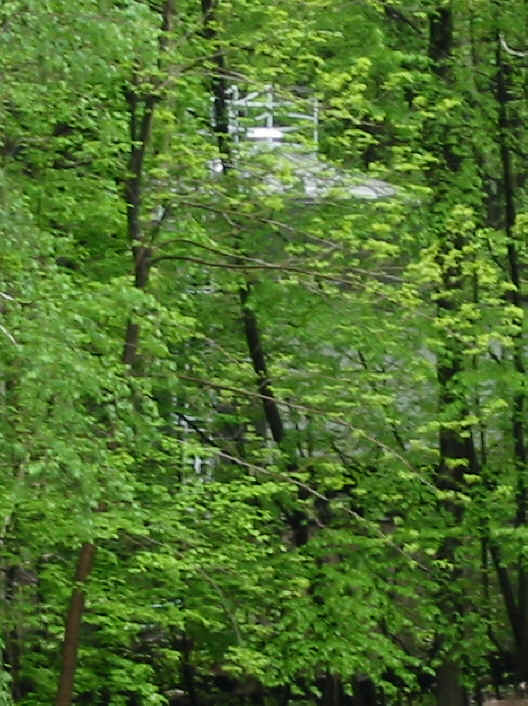

All that can be seen from the house...

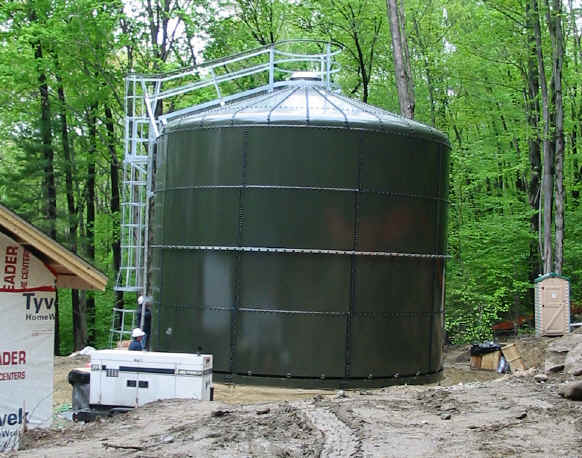

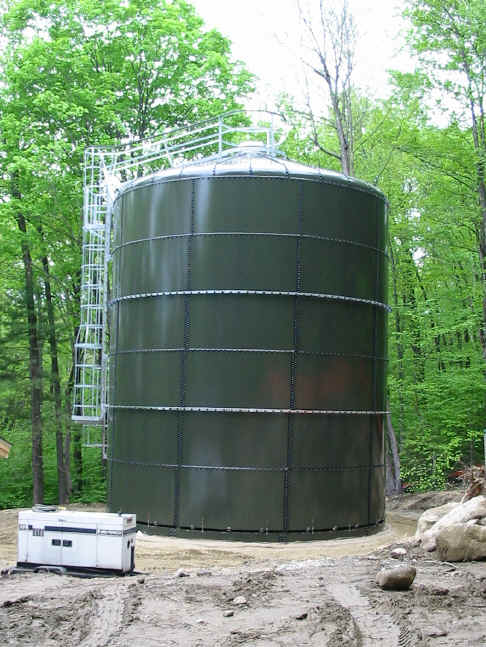

And again, it's grown by another 10 feet in 24 hours...

Oh, you bet your behind I'll be trying to get you photos from the top once the final height has been achieved..

I'm projecting 45 feet when finished...

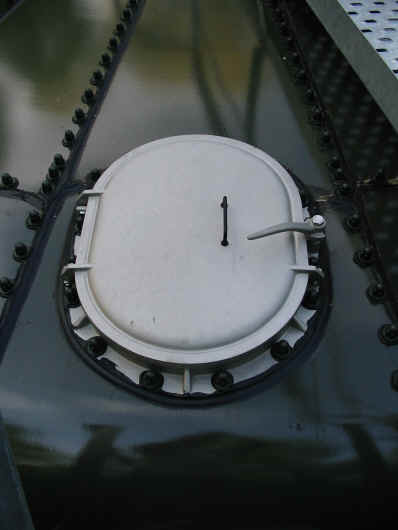

..also from the top of the ladder at the side.. this hatch looks directly down inside..

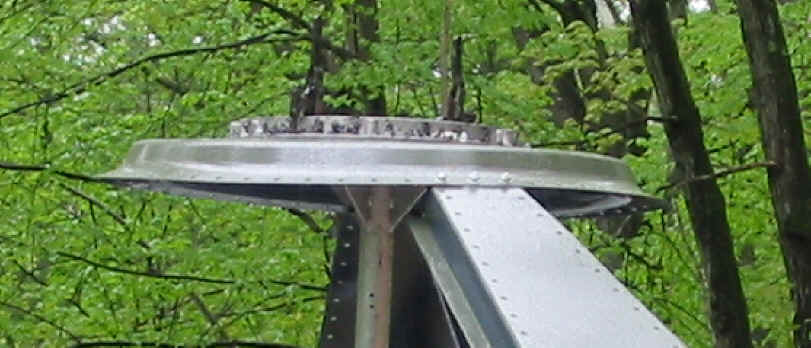

bummer, I'll have to make sure to get a pic of the vent cap at the very peak..

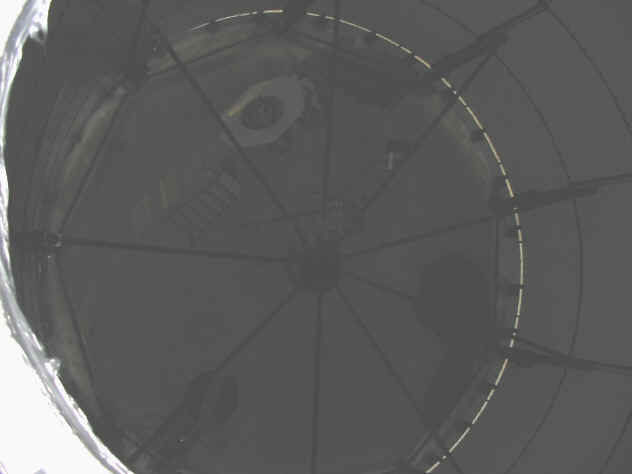

We're looking at the center of the jack system from above through the hatch on the roof of the tank.

Those are 3, 6-8 foot step ladders just above center.

The radiating arms support the tops of the jacks by angling down to a support in the center.

At the outside edges, the jack's drive shafts interconnect all the lifting units..

The jack motor is at lower left and drive shafts extend both directions around to all nine jacks.

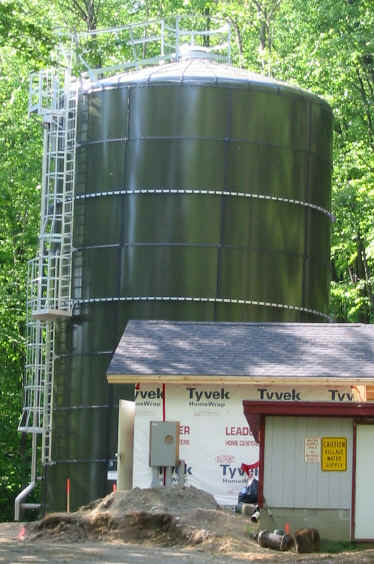

Ayuh, that'd be the final height..

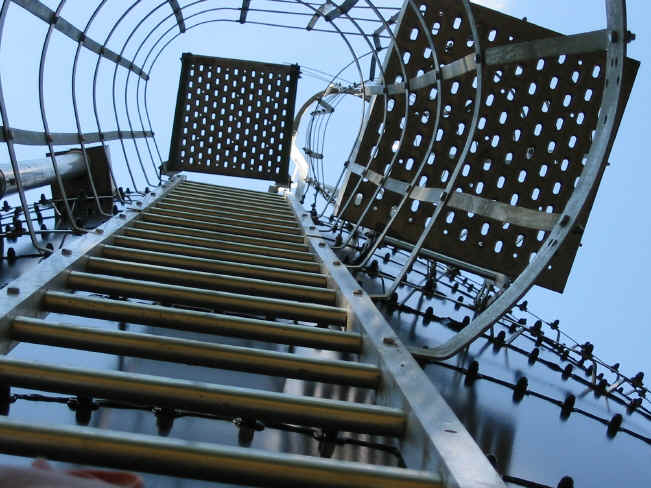

Going up?

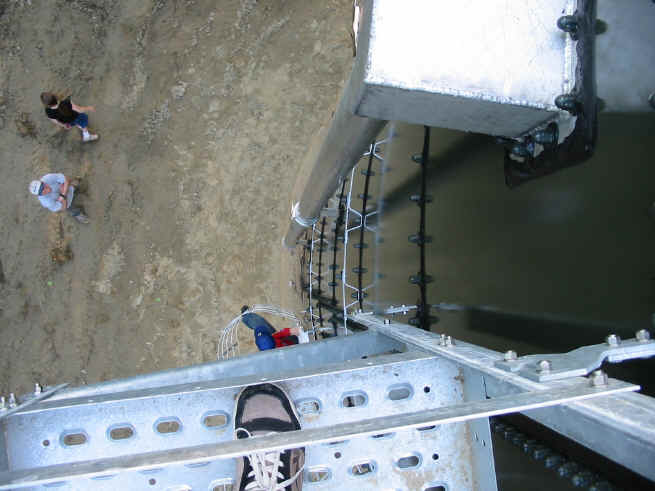

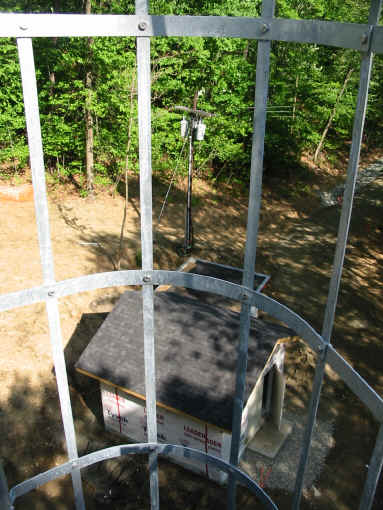

Looking down...

All of this says just one thing: DO NOT ENTER

Oops..  I see a typo...
